PRODUCT APPLICATION:
FEATURES:

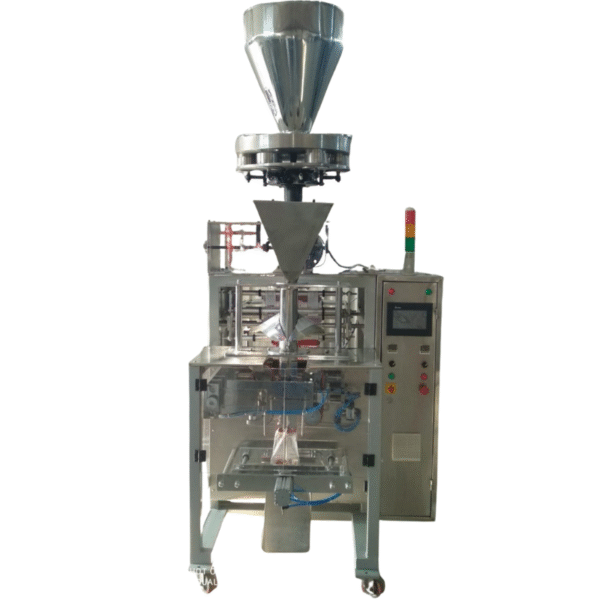

| PLC | With 7-inch Color Touch Screen |
| Temperature Control | PID Temperature Controllers |
| Pneumatic | Festo / Comozzi |
| Photocell Control | Teaching Sensor |
| Electronic Sensors | Omron / Sick |
| Packaging Type | Designed for Pillow / Gusset Type Packaging Operation |
| Safety | Emergency Stop / Tower Light Indication |
| Covering | Stainless Steel Covering |
| Additional Features | Nitrogen Flushing / Low Maintenance |
TECHNICAL SPECIFICATIONS:
| Sealing Type | Center seal / 3 side seal with batch cutting (Pneumatic Intermittent Operated) |
| Filling System / Range | Motorised Telescopic Cup Filler / 50 gm – 1 kg |
| Pulling System | Servo / Vector Drive |
| Machine Speed | 10 – 65 / Min (Depending upon nature of products & pack size) |
| Main Motor | 1 hp for Paper Pull, 1 hp for Telescopic Cup Filling (All motors are AC Motors with Gear Box) |
| Heaters | 250 watt – 2 pcs / 300 watt – 2 pcs |
| Laminate | Heat sealable laminate film. Core Dia – 75 mm / Max. Outer Dia – 450 mm |
| Power / Power Consumption | 220 Volt / 50 Hz / 2 KW |
| Machine Dimension / Weight | 2000 (L) x 1200 (W) x 2500 (H) mm / 600 – 700 kg approx |
| Optional Attachment | Electronic Contact Coder, In-feed Conveyor, Out-feed Conveyor |
| Air Compressor | 8 CFM |
